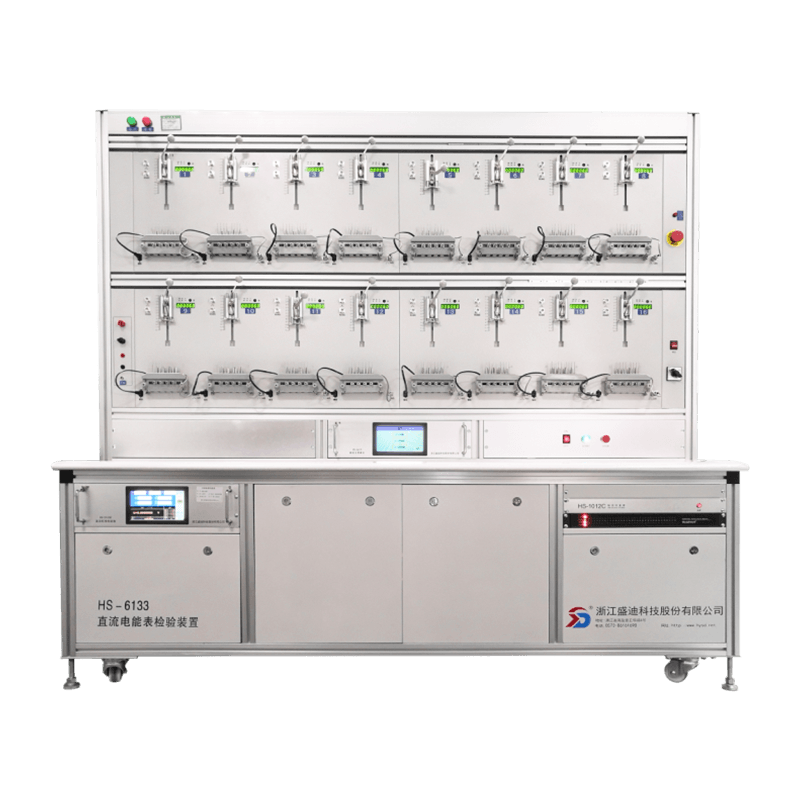

            HS-6133 DC Energy Meter Test Bench

            HS-6133 DC energy meter test bench can verify all types of DC energy meters with external and internal shunt. The bench has the characteristics of convenient use, high precision, stable index, rich function, novel interface, clear and simple operation and reliable work.

            share:

            Phone : 0086-573-86161698

            contact us

            Description

            Item

            Technical Parameter

            Bench accuracy

            0.05/0.02 class

            Reference Meter

            HS-5103E DC reference standard meter ?Accuracy:0.05/0.02 class

            ?

            ?

            ?

            Output Voltage

            Range

            Stability(%/min)

            1000V

            0.02

            500V

            0.02

            250V

            0.02

            125V

            0.02

            62.5V

            0.02

            Range:1V-1500V,0~120%,Max. output(Option1500V)

            ?

            ?

            ?

            ?

            ?

            ?

            Output Current

            ?

            Range

            Stability(%/min)

            500A

            0.4

            100A

            0.05

            50A

            0.05

            10A

            0.05

            5A

            0.05

            1A

            0.02

            100mA

            0.02

            10mA

            0.02

            1mA

            0.02

            Output Range:0.1mA~500A,0~120%

            Output current small signal(DCIU)

            10V

            0.02

            5V

            0.02

            2.5V

            0.02

            1.25V

            0.02

            0.625V

            0.02

            100mV

            0.02

            10mV

            0.02

            1mV

            0.05

            Range:1mA~10V,0~120%

            Start current output

            0.1mA (or 0.01mV) ,accuracy:1%,start-up power:accuracy 1%;

            Test function

            Basic error, creep test, start test, constant test, daily test

            Communication Test

            RS485 Communication test,According to the protocol for communication of the measured meters.

            Power supply

            3 X 220V/380V (Y)±10%,50Hz;

            Standard:

            GBT 33708-2017?Static meter for direct current energy

            JJG 842-1993 Verification Regulation of DC Kilowatt-hour Meter Q/GDW 1825-2013 Technical Specification for direct current electricity meters

            JBT 9288-1999 External shunt

            Function advantage:

            Can test direct access DC energy meter and external shunt access DC energy meter;
            Output DC voltage, current with more channel, stability, covering the commonly used DC energy meter range;
            Equipped HS-5103E Multi-function DC reference Standard Meter,can be used separately, independent inspection;

            Dimensions(unit:mm)

            Integration

            Position

            Number of rack

            Dimension:L*W*H(mm)

            Fission

            Position

            Number of rack

            Dimension:L*W*H(mm)

            6

            ?

            1600*750*1600

            6

            ?

            1600*750*1600

            12

            ?

            1600*750*1920

            16

            ?

            ??2000*750*1920 ?

            16

            ?

            2000*750*1920

            Cabinet

            600*800*1800
