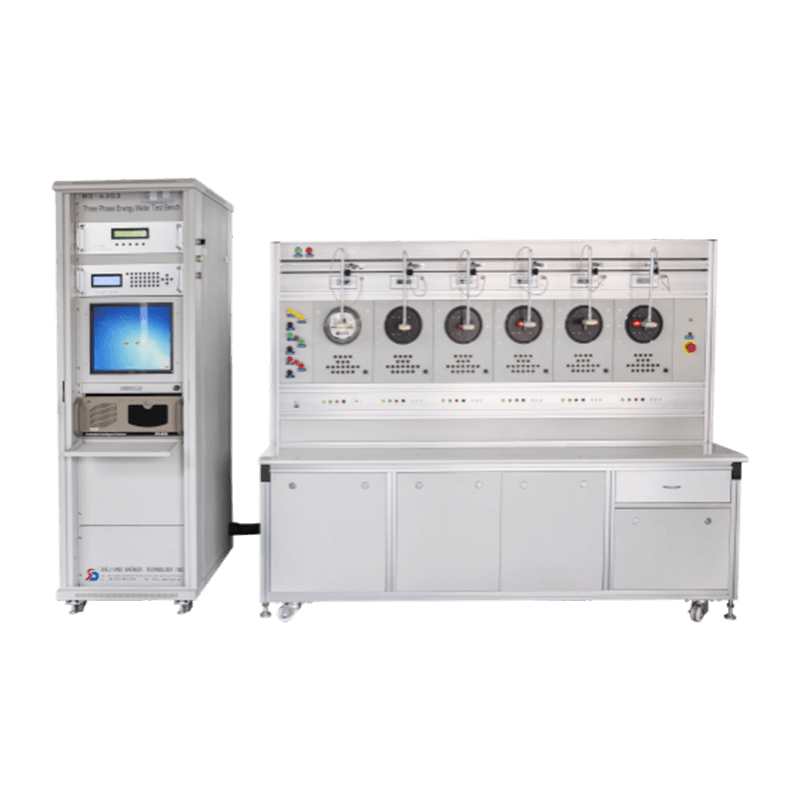

            HS-6303 three phase energy meter test bench

            HS-6303 three phase energy meter test bench adopts SPWM digital amplify technology, equips with high accuracy digital reference standard meter, multi-path voltage transformer, to realize multi-positions error testing.

            share:

            Phone : 0086-573-86161698

            contact us

            Description

            Items

            0.02 class

            0.05 class

            0.1 class

            Accuracy of reference standard meter

            HS-5300H /0.02

            HS-5300/0.05

            HS-5300/ 0.1

            Output range

            voltage:3×30~300V

            current:3×0.3m~120A

            voltage:3×30~300V

            current:3×0.3mA~120A(200A optional)

            Phase angle

            0~360°,resolution:0.01°

            Frequency

            45~65Hz ,resolution:0.01Hz

            Waveform distortion

            voltage、current<0.5%( liner load)

            power stability

            ≤0.02%/120s

            ≤0.05%/120s

            Output capacity/each phase

            voltage:300VA(6positions)

            current:250VA(100A)

            Voltage:300VA(16positions) current:900VA(100A) ?Max load can rise to 2000VA for current?with the increase of the position number, voltage 1200VA

            Load characteristic

            resistive, inductive and capacitive(less than 1uF/ each position, the Max. is less than 48 uF)

            Starting current output

            Min.0.3mA, accuracy:2%, starting power: accuracy 5%

            Communication test

            RS485/232/infrared/carrier wave, support DL/T645-1997/2007、698.45、IEC1107

            Environment condition

            Temp.:20℃±5℃;Humidity:<85% R.H.

            Power supply

            AC220±10%,50/60Hz,AC120/240V(optional);
            Max. power consumption: 3000VA(24 positions)

            Function Parameters:

            Items

            HS-6303

            HS-6303B

            HS-6303C

            HS-6303E

            HS-6303F

            HS-6303G

            HS-6303H

            Basic functions

            basic error

            creeping test

            starting test

            standard deviation

            Constant test

            dial error

            influence test

            Multi-functions test

            ?

            daily timing error☆

            ?

            ?

            ?

            period switching error

            ?

            ?

            ?

            demand period error

            ?

            ?

            ?

            demand display error

            ?

            ?

            ?

            energy display error

            ?

            ?

            ?

            register checking

            ?

            ?

            ?

            GPS timing☆

            ?

            ?

            ?

            communication test☆

            ?

            ?

            ?

            state grid test

            consistency test

            ?

            ?

            ?

            Com. protocol consistency checking

            ?

            ?

            ?

            event record

            ?

            ?

            ?

            charge test☆

            ?

            ?

            ?

            power consumption test☆

            ?

            ?

            ?

            Remark: ●─standard; 〇─optional

            ☆?is special function

            Dimensions(unit:?mm,?position recommendation)

            Integration

            Fission

            position

            ?rack

            size: L×W×H(mm)

            position

            rack

            size: L×W×H(mm)

            6

            1

            2000×800×1600

            12

            1

            2000×700×1920

            Horizontal test bench can be provided

            16

            1

            2200×700×1920

            12

            1

            2000×800×1920

            24

            2

            2000×700×1920

            16

            1

            2200×800×1920

            32

            2

            2200×700×1920

            24

            2

            2000×750×1920

            cabinet

            600×800×1920(mm)
