Index Item |
0.05 level |
|
Standard configuration level |
HS-5300 Class 0.05 |
|
Output range |
Voltage: 3×30～300V Current: 3×10mA～30A |
|
Output phase |
0～360°, resolution: 0.01° |
|
Output frequency |
45～65Hz, resolution: 0.01Hz |
|
Waveform distortion |
Voltage, current <0.5% ( relative to linear load) |
|
Power stability |
＜0.05%/120 seconds |
|
Output capacity |
Voltage: 240VA; Current: 500VA |
|
Load characteristics |
Resistive, inductive, and capacitive |
|
Start current output |
1mA minimum, accuracy: 5%, starting power: accuracy 5% |
|
Communication test |
GPRS/RS232/230 radio/Ethernet, supporting the State Grid and Southern China Grid protocols. |
|
Number of school tables |
16? |
|
Dimensions (mm) |
Length × width × height : 24 00 × 750 × 1 92 0 |
|
Environmental conditions |
Temperature: 20℃±5℃; Humidity: <85% RH |
|
Device input power |
AC220±10%, 50/60Hz, AC120/240V, ordering requires instructions; |
Functional advantages:
Six independently adjustable three-phase signal sources to meet various on-site simulation environments required by the test terminal.
Support multiple forms of communication: including RS232, GPRS, CDMA, 230 radio, Ethernet, etc.
Reliable multi-channel pulse detection and accurate error processing technology can perform error test on common transformer and special transformer terminal.
SPWM technology Power amplifier, large capacity, high performance, low power consumption, automatic alarm protection.
Modular design, good component versatility, easy to disassemble and maintain.
One-key verification control management system, automatically completed according to the plan.
Standardized cabinet, one-time stamping and forming, all aluminum alloy frame, more beautiful and firmer.
In-depth customization according to functional requirements, more humanized and differentiated design.
Six independently adjustable three-phase signal sources to meet various on-site simulation environments required by the test terminal.
Support multiple forms of communication: including RS232, GPRS, CDMA, 230 radio, Ethernet, etc.
Reliable multi-channel pulse detection and accurate error processing technology can perform error test on common transformer and special transformer terminal.
SPWM technology Power amplifier, large capacity, high performance, low power consumption, automatic alarm protection.
Modular design, good component versatility, easy to disassemble and maintain.
One-key verification control management system, automatically completed according to the plan.
Standardized cabinet, one-time stamping and forming, all aluminum alloy frame, more beautiful and firmer.
In-depth customization according to functional requirements, more humanized and differentiated design.
Model specification:
|
Model |
Name |
Scope of application |
|

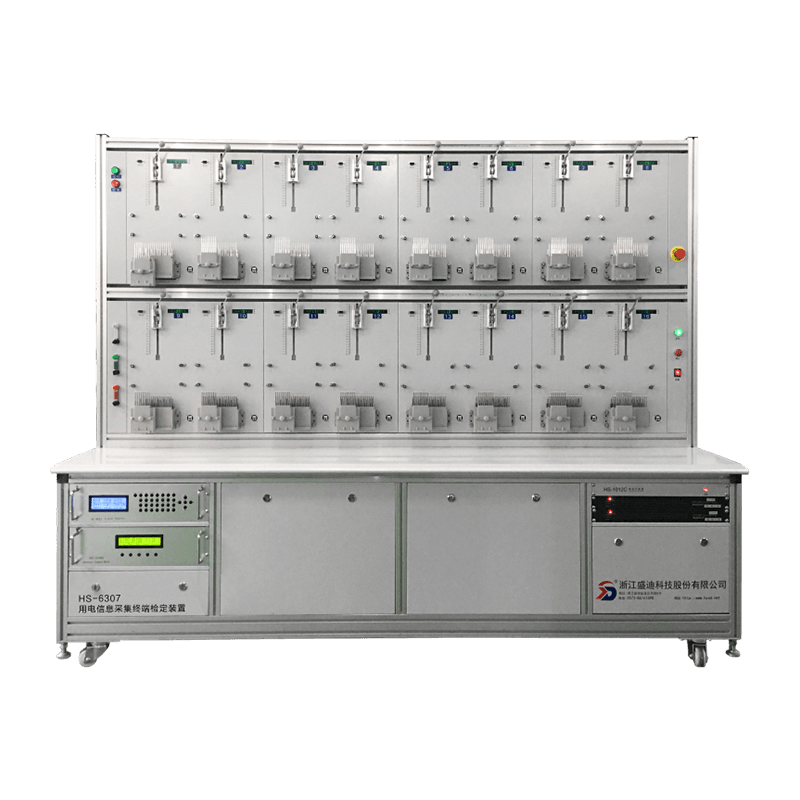

HS-6307 |
Electricity information collection terminal verification device |
Type Ⅲ Verification of Special Transformer Acquisition Terminal |
|
HS-6307B |
Multifunctional verification device for collecting terminal of electricity consumption information |
Integrated device of terminal, concentrator and collector |
|
HS-6307C |
Verification device for electricity consumption information collector |
Suitable for the verification of type Ⅰ collector and type Ⅱ collector |
Function parameter:
|
Function item |
HS-6307 |
HS-6307B |
HS-6307C |
|
Parameter setting and query |
● |
● |
〇 |
|
Data collection |
● |
● |
〇 |
|
Data processing |
● |
● |
〇 |
|
Remote control |
● |
● |
〇 |
|
Record |
● |
● |
〇 |
|
Task report |
● |
● |
〇 |
|
Data collection (AC sampling) |
● |
● |
〇 |
|
Carrier function test |
/ |
● |
● |
|
Collector function test |
〇 |
〇 |
● |
Device configuration table:
|
Installation item |
HS-6307 |
HS-6307B |
HS-6307C |
|
Standard energy meter |
● |
● |
〇 |
|
Power source |
● |
● |
● |
|
Error handling system |
● |
● |
〇 |
|
Multiple pulse input |
● |
● |
〇 |
|
Multifunctional verification unit |
● |
● |
〇 |
|
Automatic short circuit |
〇 |
〇 |
〇 |
|
Carrier communication |
〇 |
〇 |
〇 |
|
Power consumption test |
〇 |
〇 |
〇 |
|
Clock tester |
〇 |
〇 |
〇 |
|
GPS timing |
〇 |
〇 |
〇 |
Note: ●─Basic configuration; 〇─Optional configuration
-->
