            HS-1012 series clock tester

            The HS-1012 series clock tester is a high-precision, high-stability clock signal test equipment, which can be used to detect the output accuracy of the clock signal. This equipment has the advantages of high precision, good stability, beautiful appearance, convenient operation, high test efficiency, short warm-up time, and internal isolation for signal input and output.

            share:

            Phone : 0086-573-86161698

            contact us

            Description

            Model

            HS-1012A

            HS-1012B

            Frequency range of measured signal

            ≤10MHz

            1Hz~1.5kHz

            Measured signal amplitude

            ≤ 12V

            Measured day timing error range

            ±0.001 seconds/day~±9999 seconds/day

            Time base frequency

            5×10 6 Hz

            Time base frequency accuracy

            ≤±1.0x10 -8 (@25℃, factory calibration)

            Daily fluctuation of time base frequency

            ≤±3×10 -10

            Dimensions (length × width × height mm)

            300×250×210

            300×250×120

            Use environmental conditions

            Temperature: 0℃~40℃; Humidity: <85% RH

            Power supply

            AC 220V ± 10%, 50 / 60Hz

            Functional advantage:
            1. Using high precision and high stability 5MHz constant temperature crystal oscillator
            2. Wide input range, allowing active and passive signals
            3. Easy to use, simple to operate, humanized panel design, high efficiency in testing

            Product number:

            Model

            Scope of application

            HS-1012A

            Clock signal measurement, configuration and platform

            HS-1012B

            Standard second pulse measurement, suitable for manual operation

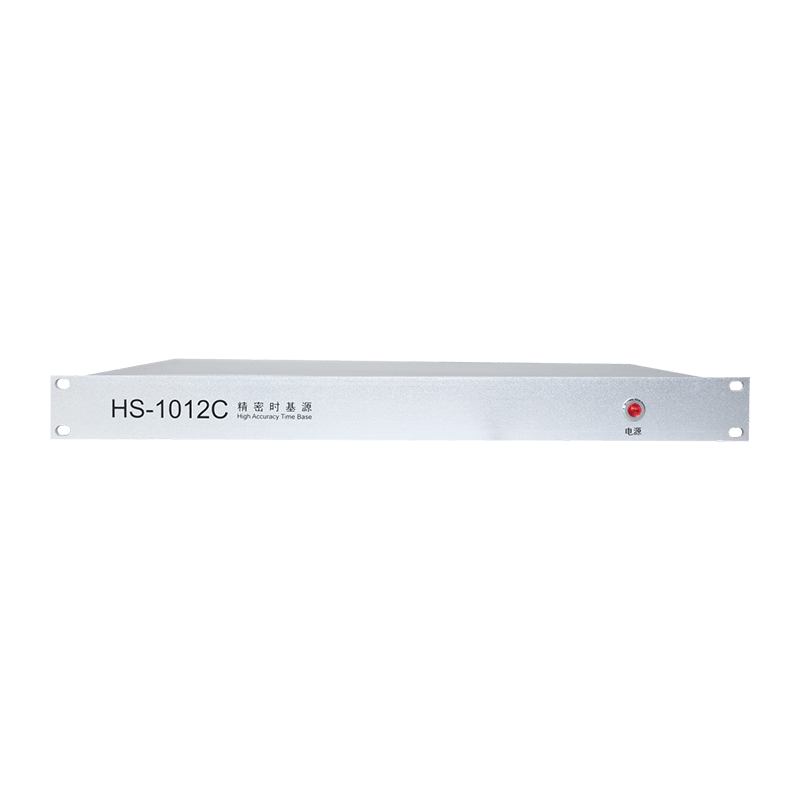

            HS-1012C

            Standard time base source, suitable for use with the body
